An Introduction to Roaring Bitmaps for Software Engineers
Hey, it’s your favorite cult leader here 🦹♂️🦹♂️
Mondays are dedicated to theoretical concepts. We’ll cover ideas in Computer Science💻💻, math, software engineering, and much more. Use these days to strengthen your grip on the fundamentals and 10x your skills 🚀🚀.
I put a lot of effort into creating work that is informative, useful, and independent from undue influence. If you’d like to support my writing, please consider becoming a paid subscriber to this newsletter. Doing so helps me put more effort into writing/research, reach more people, and supports my crippling chocolate milk addiction.
PS- We follow a “pay what you can” model, which allows you to support within your means, and support my mission of providing high-quality technical education to everyone for less than the price of a cup of coffee. Check out this post for more details and to find a plan that works for you.
I was reading Google’s report- “Procella: Unifying serving and analytical data at YouTube”, which solves some very important Data Engineering problems for YouTube-
Large organizations like YouTube are dealing with exploding data volume and increasing demand for data driven applications. Broadly, these can be categorized as: reporting and dashboarding, embedded statistics in pages, time-series monitoring, and ad-hoc analysis. Typically, organizations build specialized infrastructure for each of these use cases. This, however, creates silos of data and processing, and results in a complex, expensive, and harder to maintain infrastructure. At YouTube, we solved this problem by building a new SQL query engine — Procella. Procella implements a super-set of capabilities required to address all of the four use cases above, with high scale and performance, in a single product. Today, Procella serves hundreds of billions of queries per day across all four workloads at YouTube and several other Google product areas.
While reading it, an idea that I’d never heard of stood out to me: Roaring Bitmaps. They were able to use it to reduce their latencies by 500 orders of magnitude (that’s so large that I’d buy it if it was a typo)-
By storing these indices as Roaring bitmaps [10] we are able to easily evaluate typical boolean filters (i.e. ‘WHERE 123 in ArrayOfExperiments OR 456 in ArrayOfExperiments’) efficiently, without having to go through the normal evaluation pathway. In current production use cases we have found that experiment analysis queries have end to end latencies reduced by ∼ 500x orders of magnitude when we apply this technique.
So, I thought this would be a good time to learn about Roaring Bitmaps. Turns out Roaring Bitmaps are one of the most impactful data structures used by organizations today, so knowing them is key for modern software engineering. The following article will be my overview of the basics of roaring bitmaps and how they’re used by organizations.
Memory in use reported by Redis (matches RSS of the redis-server process): 129.48G.
With the same dataset migrated to standalone bitmapist server under the same load: RSS reported at about 300M.
-These numbers are unreal. Source
I provide various consulting and advisory services. If you‘d like to explore how we can work together, reach out to me through any of my socials over here or reply to this email.
Introduction: Why do Roaring Bitmaps Exist?
Imagine you’re tasked with storing a set of user IDs who clicked a particular ad on a website. With millions of users, storing these IDs as a simple list or array quickly becomes inefficient. So, what data structures can we use to store and process large sets of 32-bit integers efficiently?
Bitmaps

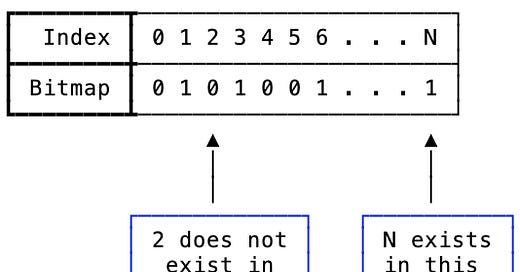

A bitmap uses a single bit to represent the presence (1) or absence (0) of an element in a set. For instance, to store the set {1, 3, 5} within a universe of 0 to 5, you’d use the bitmap “101010”.
However, standard bitmaps have limitations:
Sparsity Issues: If your data is sparse (large gaps between values), a bitmap can be mostly zeros, wasting space. Those of you familiar with high-dimensional spaces will recognize how common sparse representations can be when doing any Data Analysis.
Set Operation Challenges: While bitwise operations can perform set operations, they become less efficient for large, sparse sets.
This is where Roaring Bitmaps come in.
Enter the Roaring Bitmaps
Roaring Bitmaps tackle these issues by offering a compressed and optimized representation of the bitmap, leading to significant space savings and faster operations-
Roaring Bitmaps are built on a hierarchical structure that adapts to varying data distributions. Let’s break down their key components:
Efficiency Overview
As you study the Roaring Bitmaps Data-structure, it is helpful to observe that their efficiency comes from the implementation choices:
1. Memory Layout
Contiguous memory allocation for containers when possible.
Careful alignment of data structures for optimal memory access.
2. Optimization Techniques
Lazy operations: Deferring computations until results are needed.
Container conversions: Dynamically switching between container types based on density.
Two-Level Structure
Roaring bitmaps store 32-bit integers in a compact and efficient two-level indexing data structure. Dense chunks are stored using bitmaps; sparse chunks use packed arrays of 16-bit integers. In our example ({0, 62, 124, . . .}), it would use only ≈ 16 bits/integer, half of Concise’s memory usage. Moreover, on the synthetic-data test proposed by Colantonio and Di Pietro [1], it is at least four times faster than WAH and Concise. In some instances, it can be hundreds of times faster
Roaring Bitmaps use a two-level structure to organize data efficiently:
Top Level: A dynamic array of 16-bit integer keys, each corresponding to a chunk of 2¹⁶ integers.
Second Level: For each 16-bit chunk, one of three container types is used to store the lower 16 bits of the integers in that range.
Roaring Bitmaps divide the input integer range into fixed-size containers, each responsible for a specific range of values. With a container size of 2¹⁶, the first container manages values 0–65535, the second 65536–131071, and so on.
Container Types: Choosing the Right Tool
Roaring Bitmaps employ three different container types, chosen dynamically based on the data distribution within each container to ensure optimal storage:
a) Array Container
Structure: A sorted array storing the individual integer values present within the container’s range.
Ideal for: Sparse ranges with fewer than 4096 elements.
Example: The set {1, 10, 1000} within the container 0–65535.
b) Bitmap Container
Structure: A traditional bitmap, using one bit per possible value within the container’s range.
Ideal for: Dense ranges with a significant number of elements.
Example: A set with 30,000 evenly distributed values between 0 and 65535.
c) Run Container
Structure: Stores consecutive sequences of values using only the start and length of the run.
Ideal for: Long consecutive sequences within the container’s range.
Example: The set {10, 11, 12, 13, 14, 15} is efficiently stored as a single run (start=10, length=6).
This adaptive container selection is key to Roaring Bitmaps’ efficiency. They dynamically adjust their structure to the data, ensuring optimal storage and operation speed. Let’s look into how we can perform operations on Roaring Bitmaps (this is the backbone for what YouTube needed after all).
Operations and Efficiency for Roaring Bitmaps
The true power of Roaring Bitmaps shines when performing set operations. Their structure allows for highly optimized algorithms:
1. Basic Operations
Insertion: The appropriate container is identified, and the element is inserted according to the container type. If an insertion makes a container inefficient (e.g., exceeding the size limit of an array container), the container is converted to a more suitable type.
Deletion: Similar to insertion, the element is removed from the corresponding container, potentially triggering a container type conversion if needed.
Membership Testing: The container is identified, and the presence of the element is checked. This search is highly efficient due to the sorted nature of array containers and the direct addressing capability of bitmaps.
2. Advanced Set Operations
AND (Intersection): Performed container by container. Only matching container types need to be compared, leading to high efficiency. A lot of software teams often overlooks these kinds of lazy operations, but they can be very useful for keeping costs down (and are generally fairly easy to figure out once you understand your domain/process).
OR (Union): Two Roaring Bitmaps are combined by performing unions on corresponding containers. The resulting container type is chosen based on the union’s characteristics.
XOR (Symmetric Difference): Similar to union, but keeping only elements that are in one set but not the other.
NOT (Complement): Inverts a bitmap, efficiently performed at the container level.
Applications for Roaring Bitmaps
The efficiency and versatility of Roaring Bitmaps have led to their widespread adoption in diverse domains:
1. Databases and Data Warehousing
Columnar Databases: Efficiently store values within a column, leading to faster query processing.
Index Compression: Significantly reduce the storage footprint of indexes, improving query performance.
Distinct Count Estimation: Provide fast approximations for the number of unique values, vital for data analysis and query optimization.
2. Search Engines
Inverted Indexes: Represent the set of documents containing a specific term, enabling fast search result retrieval.
Faceted Search: Efficiently handle filtering of search results based on multiple criteria, providing a smooth user experience.
3. Data Analytics
Log analysis: Identify users or sessions exhibiting specific activity patterns, crucial for understanding user behavior.
Recommendation systems: Find users with similar preferences by performing set operations on their item interaction histories.
4. Other Applications
Bioinformatics: Analyze and compare large genomic datasets.
Network Security: Track network activity and identify anomalies.
Machine Learning: Represent features and perform fast similarity comparisons.
There are lots of libraries in the major programming languages, so make sure you play around with them to check out the implementation.
Best Practices and Optimization Tips
To get the most out of Roaring Bitmaps:
Use bulk operations: Add or remove multiple elements at once. This can reduce the additional overhead of loading and unloading memory. In my breakdown of the phenomenal report, “Scaling TensorFlow to 300 million predictions per second”, we saw that using Larger Batch sizes enabled the team to halve their computational costs.
Leverage run containers: For data with long runs of consecutive integers, run containers can significantly reduce memory usage.
Consider cardinality: For very sparse data, go with traditional hash sets.
Profile your usage: The effectiveness of Roaring Bitmaps can vary based on data characteristics. Profile your specific use case.
Use native operations: Go with built-in operations over manual loops for better performance. This is something I can be very bad with, so so I’m going to throw this on a bunch of sticky notes around my apartment.
Advantages and Disadvantages
Advantages
Exceptional Space Efficiency: Roaring Bitmaps often achieve significant space savings, especially for sparse and clustered data.
Lightning-Fast Set Operations: Their structure enables rapid intersection, union, and difference operations, outperforming traditional methods.
Wide Applicability: Their versatility allows them to be employed in diverse domains and tasks.
Adaptive Structure: The use of different container types allows Roaring Bitmaps to efficiently handle various data distributions.
Disadvantages:
Memory Overhead: While generally efficient, the container management can introduce some memory overhead.
Not Universally Ideal: Performance can degrade for data with uniform distribution, where the benefits of compression diminish.
32-bit Integer Limitation: Roaring Bitmaps are designed for 32-bit integers. For other data types, you’ll need to map your data to this range.
Complexity: The hybrid approach, while powerful, adds complexity compared to simpler bitmap implementations.
Roaring Bitmaps have proven to be a powerful data structure for managing large sets of integers. Their ability to compress data while enabling fast set operations makes them indispensable in various applications, from databases and search engines to data analytics and machine learning.
As data volumes continue to grow and the need for efficient processing intensifies, Roaring Bitmaps are well-positioned to play an even more significant role in the future of data-intensive applications. Ongoing research into new compression techniques, hardware acceleration, and further optimizations ensures that Roaring Bitmaps will continue to evolve and remain a vital tool in our increasingly data-driven world.
